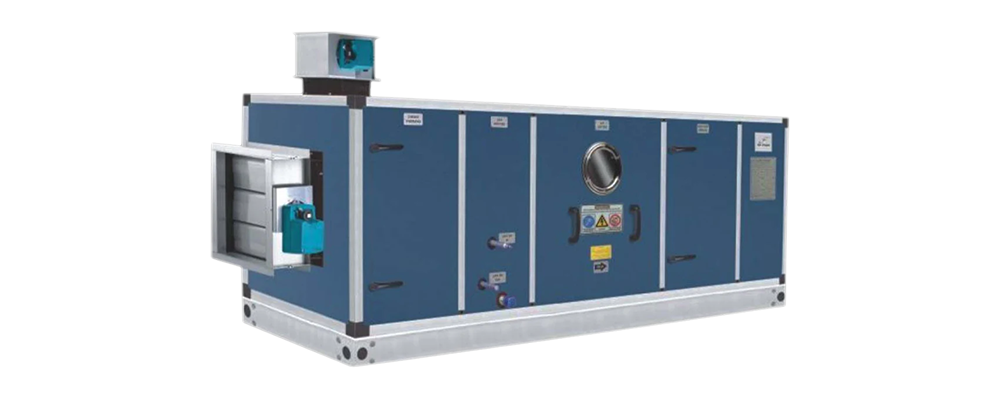

Thermal Break / Non-Thermal Break Double Skin Air Handling Units – Floor Mounted

These Air Handling Units (AHUs) are constructed with 43mm thick PUF panels and an aluminium anodized structure. The AHU panels consist of a pre-painted galvanized iron (GI) sheet for the exterior skin and a plain galvanized iron sheet for the interior skin. These AHUs are designed for easy transportation in dismantled condition and can be installed on-site without hassle.

• PUF Density: 40 kg/cu.mtr

• Coil Sections: Available with chilled water, hot water, and steam coils in 2, 4, 6 & 8 rows deep.

• Coil Tray: SS 304 insulated coil tray with mist eliminator and proper drain trap.

• Coil Face Velocity: Not more than 500 FPM.

• Fans: High-efficiency centrifugal fans (KRUGER / NICOTRA make, AMCA certified).

• Direct Drive Fans: Compatible with BMS systems for energy conservation.

• Motors: Three-phase induction motors (Eff-1 & Eff-2) of CG / ABB / Kirloskar make.

The centrifugal blower and motor are mounted on a common base frame with a suitable drive package and spring/rubber-type anti-vibration isolators. A door limit switch automatically trips the motor/fan when the door is opened.

• Service Doors: Equipped with aluminium die-cast hinges and nylon handles.

• Base Frame: Constructed from 16G GI or 100x50mm MS channel depending on AHU size & capacity.

• Filtration: Custom-made filtration levels as required.

• Easy Placement: Fully dismantlable for smooth transportation and installation.

Single Skin Air Handling Units – Floor Mounted

These AHUs are built with 16G/18G pre-painted or powder-coated galvanized iron sheet panels supported by an aluminium anodized structure. Designed for easy site installation and hassle-free transportation in dismantled condition.

• Fans: Centrifugal fans (KRUGER / NICOTRA make, AMCA certified).

• Direct Drive Fans: Compatible with BMS systems for energy efficiency.

• Motors: Three-phase induction motors (Eff-1 & Eff-2) of CG / ABB / Kirloskar make.

• Base Frame: 16G GI or 100x50mm MS channel depending on AHU size & capacity.

• Anti-Vibration: Blower and motor on a common base frame with spring/rubber-type isolators.

• Service Doors: Aluminium die-cast hinges and nylon handles.

• Door Safety: Door limit switch automatically trips the motor/fan when the door is opened.

• Filtration: Customized filtration levels as per requirement.

• Easy Placement: Dismantlable design for convenient site handling.

Evaporative Cooling Air Handling Units – Floor Mounted

These AHUs are manufactured from 16G/18G pre-painted or powder-coated galvanized iron sheet panels with an aluminium anodized structure. Built for easy transportation in dismantled form and simple on-site installation.

• Evaporative Cooling System: Cooling pad mounted on an SS water tank, complete with mist eliminator and mono block pump, including piping and controls.

• Pad Face Velocity: Not more than 500 FPM.

• Fans: Centrifugal fans (KRUGER / NICOTRA make, AMCA certified).

• Direct Drive Fans: Compatible with BMS systems for energy saving.

• Motors: Three-phase induction motors (Eff-1 & Eff-2) of CG / ABB / Kirloskar make.

• Base Frame: Made from 16G GI or 100x50mm MS channel depending on AHU size & capacity.

• Anti-Vibration: Blower and motor placed on a common base frame with spring/rubber-type isolators.

• Service Doors: Aluminium die-cast hinges and nylon handles.

• Door Safety: Door limit switch automatically trips the motor/fan when the door is opened.

• Filtration: Fully customizable filtration levels to meet specific requirements.

• Easy Placement: Dismantlable for smooth handling and installation.

Key Features of Our Air Handling Units (AHUs)

• Energy Efficiency: Energy-efficient design compatible with Building Management Systems (BMS).

• Flexible Coil Options: Flexible coil options with chilled water, hot water, and steam applications.

• Certified Fans: AMCA-certified centrifugal fans from globally trusted brands.

• Heavy-duty Construction: Heavy-duty construction with galvanized iron panels and aluminium anodized structures.

• Easy Placement: Designed for easy transportation, installation, and long-term durability.

• Custom Filtration: Custom filtration levels for optimal indoor air quality.
